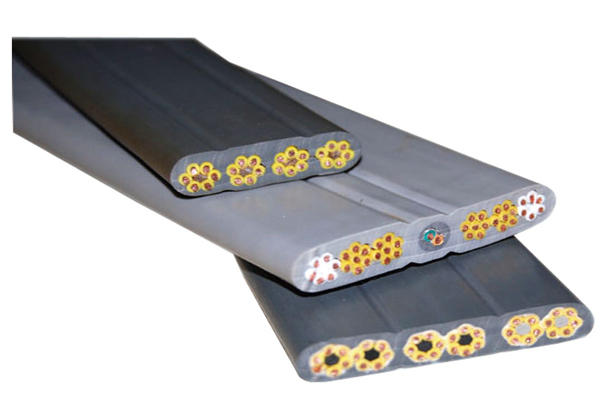

Flexible Flat cables are produced by Q1320282,AQ001-91. It is applicable to the exchange rated voltage Uo / U of 450V/750V and below portable electrical equipment. The flat structure is especially applicable to the frequent bending occasions.

1. Insulation material: PVC/RUBBER
2. Conductor material: Copper
3. Ac rated voltage:Uo/U=450v/750V
(Uo: refers to the rms voltage between any conductor and the ground.
 U: refers to the rms voltage between any two conductors. )
4. Wire core long-term working temperature:¡Ü65¡æ
5. Products standard:Q/32028AQ001-91
Application
This product is applied to the AC(Alternating Current) rated voltage 0.6/1kV and below. Especially suitable
for frequent bending or oil-resistant occasions for power plant or moving lighting electricity power transmission.
Product has good flexibility, aging resistance properties.
