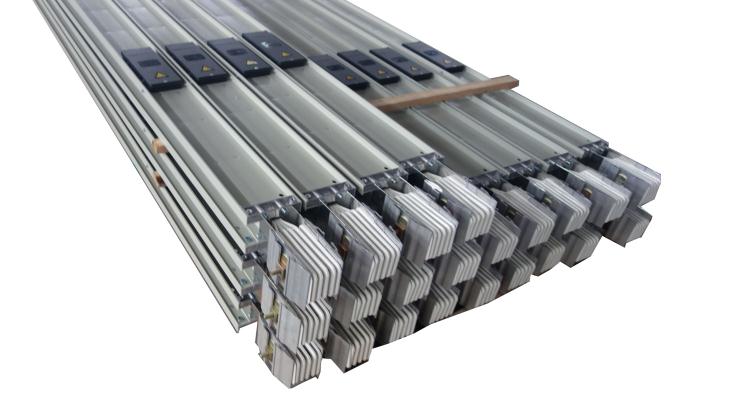

Supply electrical sandwich type aluminum busbar is used in the system of 3 phase 4 wires ,3 phase 5 wires ,50-60 HZ,with rated current 100-6300A power supply and distribution ,as a scheme of low cost an d high efficiency for industrial factories ,hospitals ,high-rises buildings and those environment with high-tech,to achieve good cost performance.
Structure feature --Small size ,good flexibility --Convenient and fast connection --Good electric conduction and insulation --Full AL shell (full Al shell feature dust-proof performance good ventilation ,and electric conduction ) Specifications
--Current Rating: 400 A to 6300 A(CU) or 100A to 4000A(AL) --Ingress protection : IP54 or IP68 --Insulation curent rating: [upto 1000 A] --Frequency£º50-60Hz --Conductor:AL or Copper --Standard lengths : 4m/3m/2m/1m --System Voltage: AC380 /690V --Conductor material: High conductivity Cu or AL --Halogen free, fire retardant Class-B-Epoxy insulation --Tap - off units are suitable for MCCBs or SDFs or MCBs
|
