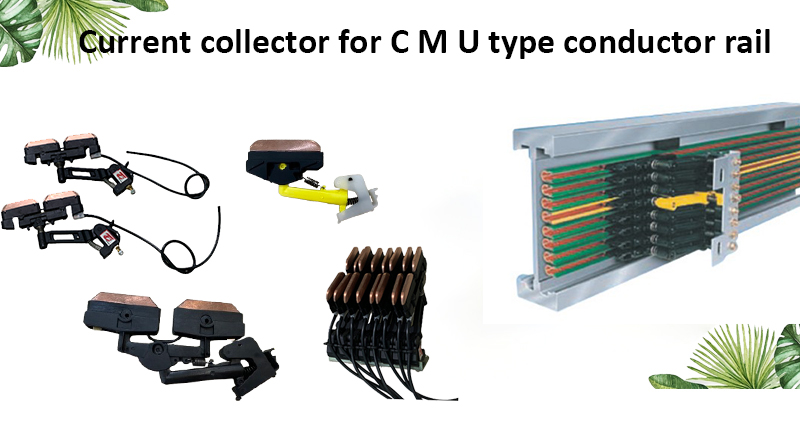

Hot Selling Current Collector for C/U/M Type Copper Conductor Bar System
Release Date: 2025-05-08 15:56:27   Print

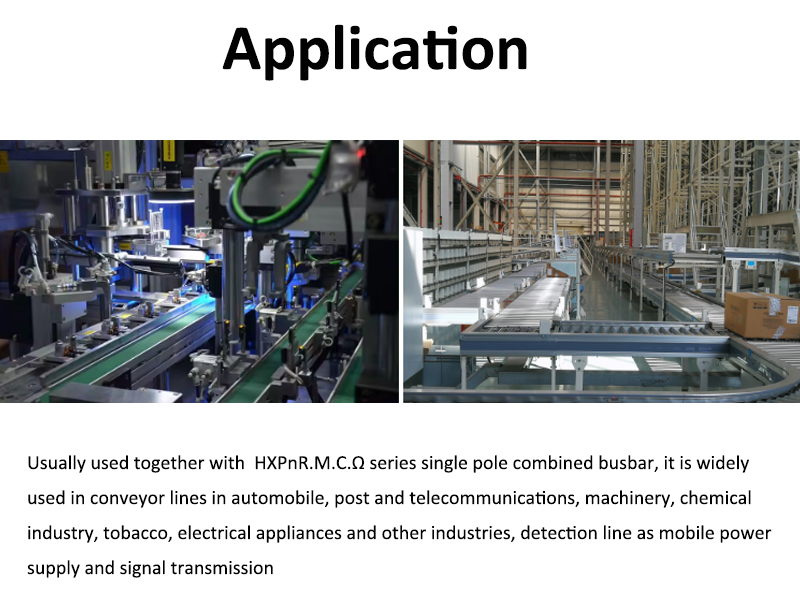

This is one of our hot selling products,with competitive price ,stable quality ,matching M/U/C type conductor rail/busbar used,and we also have some other type current collectors.They can be used in automated production lines, inspection lines, conveyor lines, etc.
Product description:
This is one of our hot selling products,with competitive price ,stable quality ,matching M/U/C type conductor rail/busbar used,and we also have some other type current collectors.They can be used in automated production lines, inspection lines, conveyor lines, etc.

Specification:
Model
Poles
Dimension/a
Dimension/b
Dimension/c
Base plate
JDS2/40-1
1
80
118
/
8poles(No.2-8 are empty)
JDS2/40-2
2
80
118
/
8poles(No.3-8 are empty)
JDS2/40-3
3
80
118
/
8poles(No.4-8 are empty)
JDS2/40-4
4
80
118
/
8poles(No.5-8 are empty)
JDS2/40-5
5
80
118
/
8poles(No.6-8 are empty)
JDS2/40-6
6
80
118
/
8pole(No.7-8 are empty)
JDS2/40-7
7
80
118
53
8pole(No.8 are empty)
JDS2/40-8
8
80
118
53
8poles
JDS2/40-9
9
80
146
53
10pole(No.10 are empty)
JDS2/40-10
10
80
146
53
10poles
JDS2/40-11
11
120
174
80
11poles
JDS2/40-12
12
120
174
80
12poles

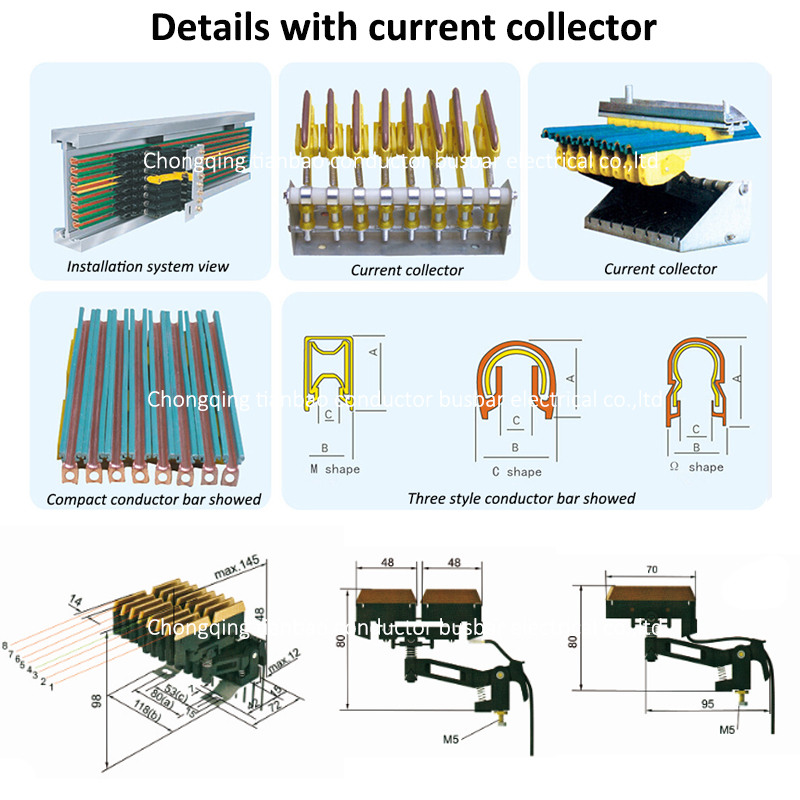

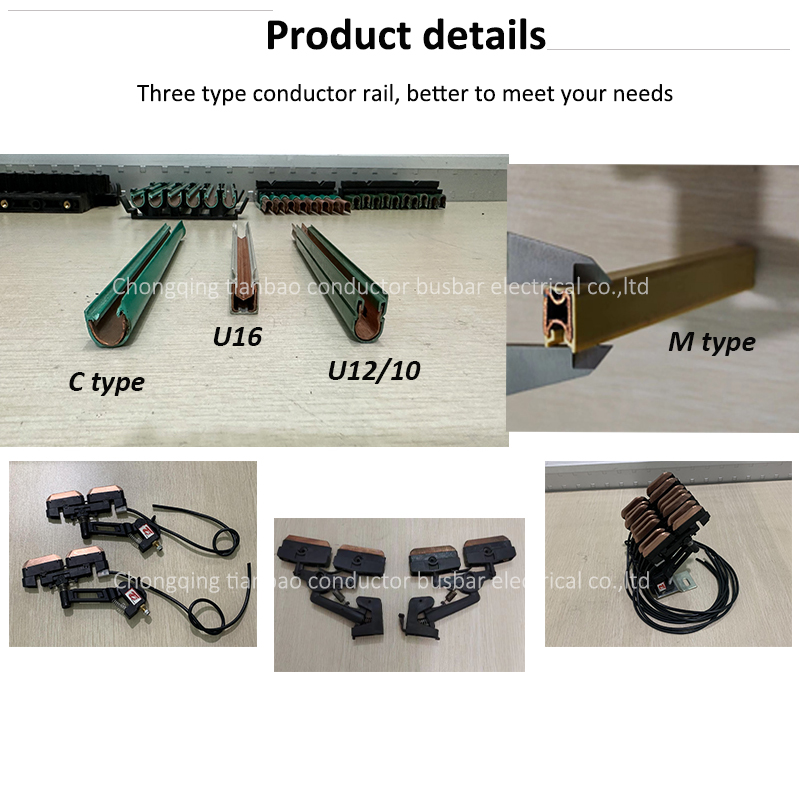

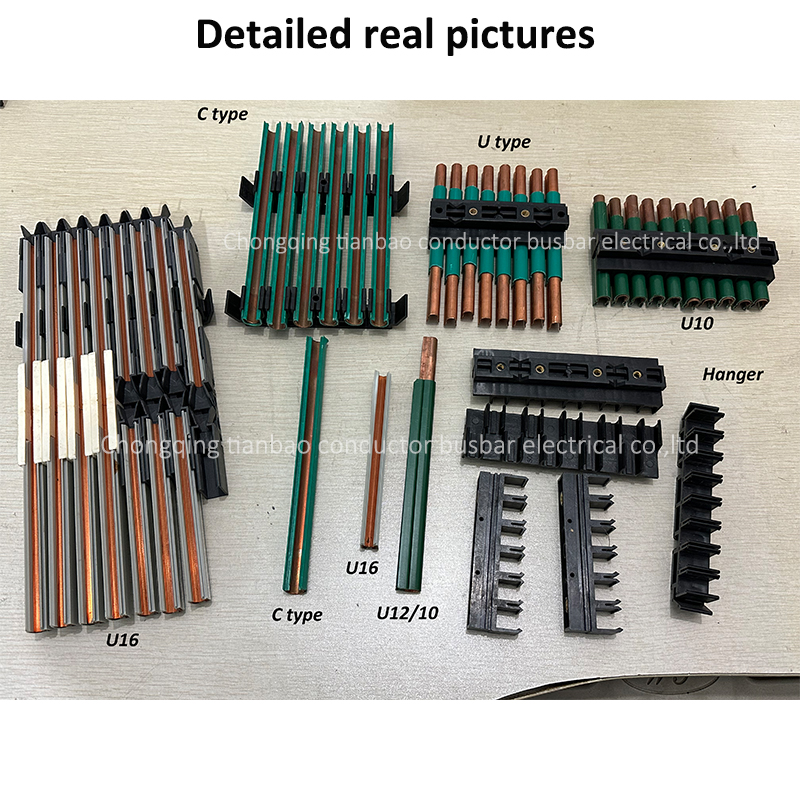

Product details:





Company profile
Chongqing Tianbao Conductor Busbar Electrical Co.,Ltd. Is located in Chongqing ,Established in 2001 and have been involved in this field for more than ten years. Tianbao is professional enterprise in searching and developing the electrical products and engineering.The main products includes:conductor rail system .bus duct system,cable festoon system ,cable drag chain cable tray,lighting busbar and related accessories, our products used in mobile power supply for crane ,electrical hoist .as well as factory,high building power distribution.With excellent products quality ,good service our products are greatly favored by customers around the domestic and foreign market. We will devote ourselves to provide better service for the whole world customer.
